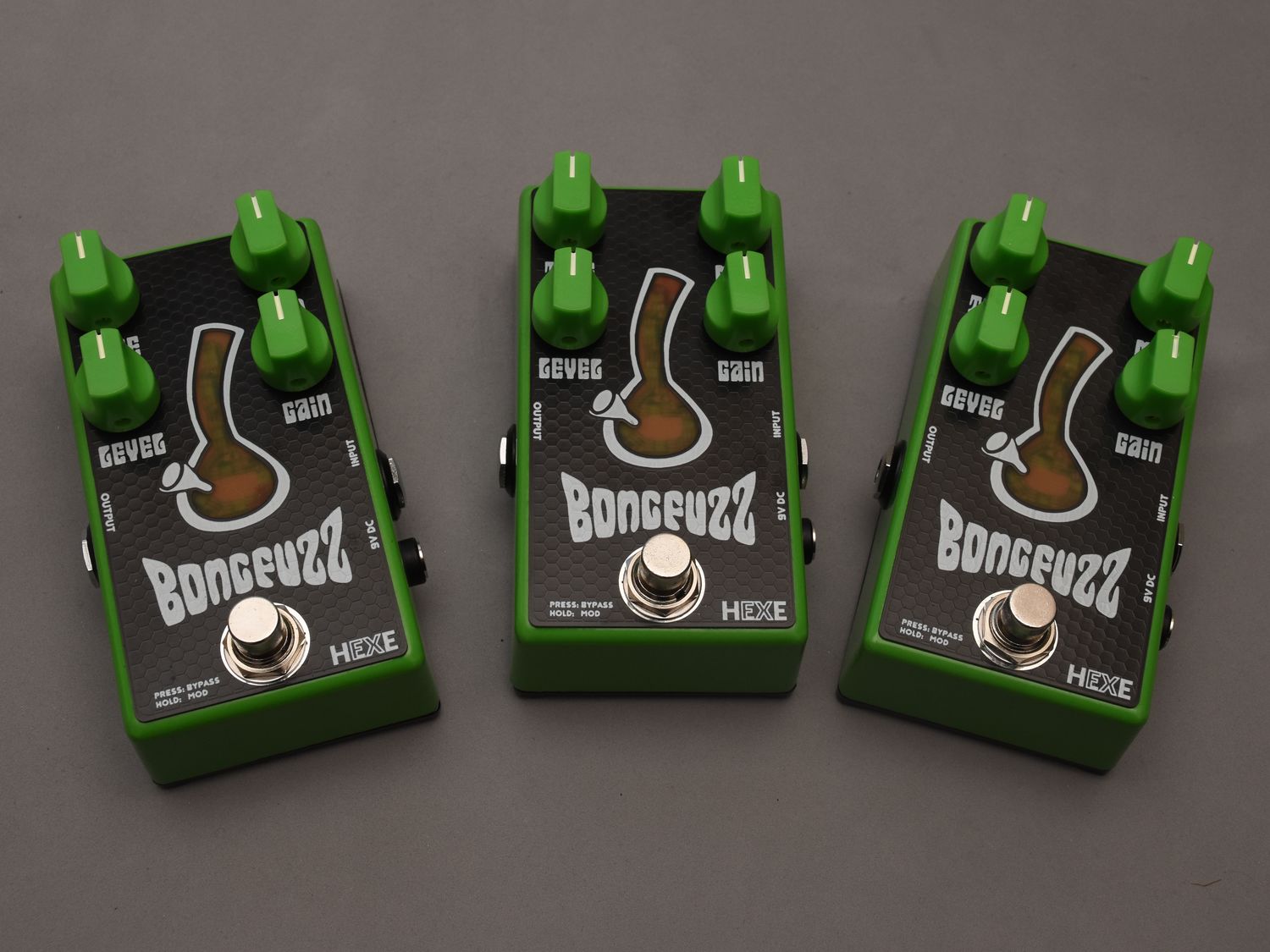

Massive doom fuzz with modulation.
Custom design for my friends at
BELZEBONG
General concept:
It would probably be another fuzz pedal among thousands existing, if not for a few interesting and uncommon features:
- Build in pre-EQ based on 2 stage phaser with manual control and LFO.
- Internal control for filter resonance.
- Internal Dry/Wet mixer coming handy when used with bass.
- 3 types of Harmonic distortion.
One of the 3 units is designed for bass and has the modualtor frequency range tailored to the lower band.
Controls:
External
- Gain
- Tone
- Level
- Mod (Pre EQ control)
- Footswitch press: true bypass
- Footswtich hold: Enable/Disable pre EQ
Internal
- Resonance (pre EQ)
- Dry/Wet mix ratio
- Harmonics (3 way switch)
Pre-EQ / Modulator
The static or modulated pre-EQ based on a phaser hugely widens the range of harmonic textures produced by the pedal.

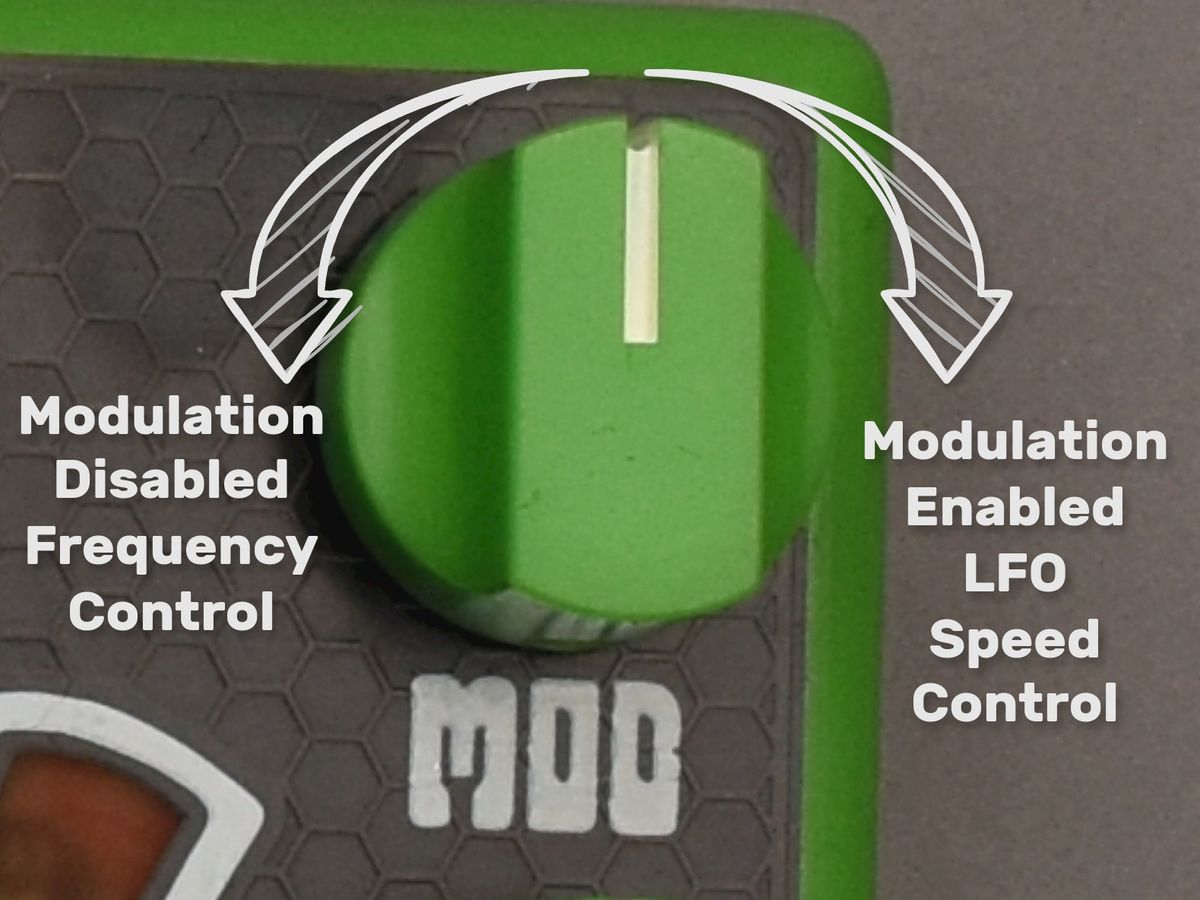

Controlled by the MOD knob, the range is split in two parts:
- Manual control, range starting at 0 up to 12 o'clock. Controlled parameter is the cutoff frequency.
- LFO control, range startin past 12 o'clock. Controlled parameter is the LFO rate.
The depth of the effect is contolled with an internal Resonance trimpot.
